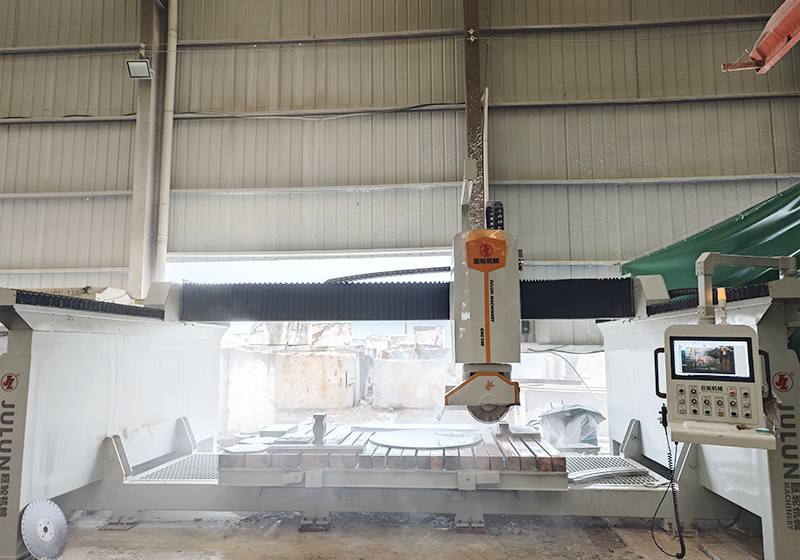

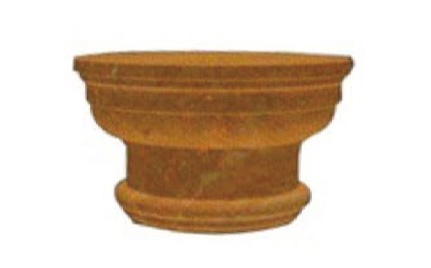

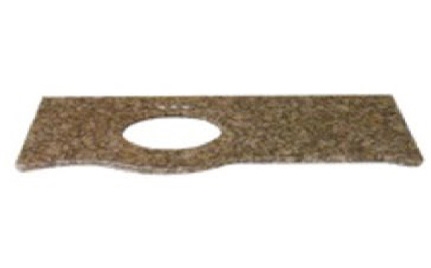

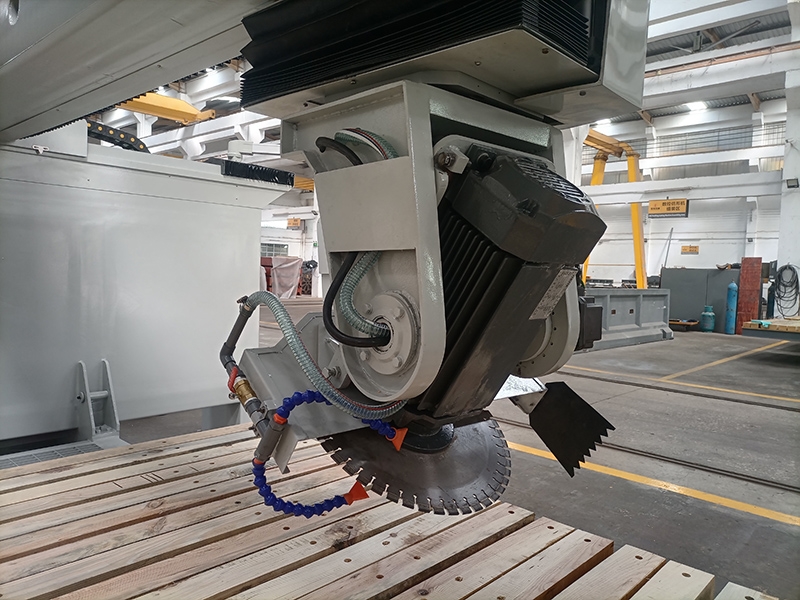

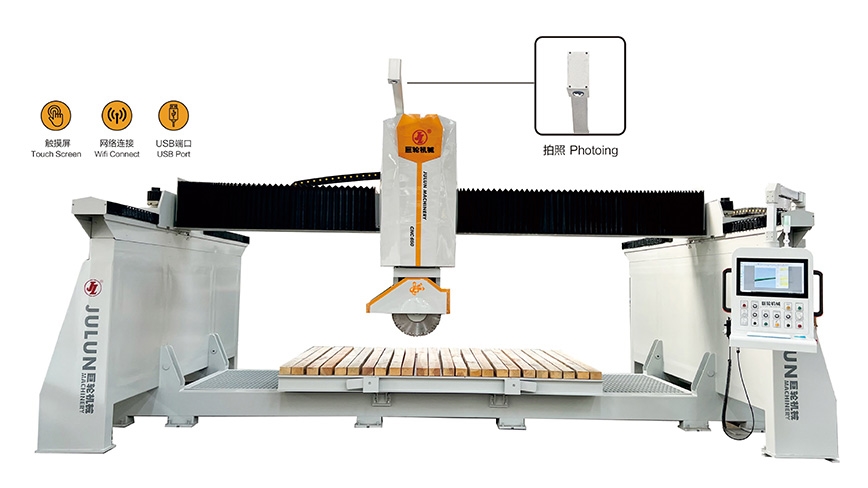

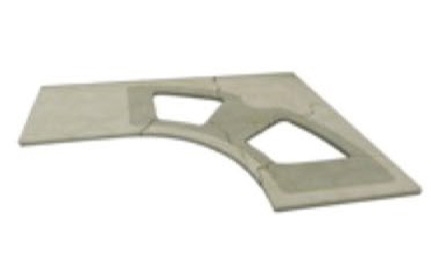

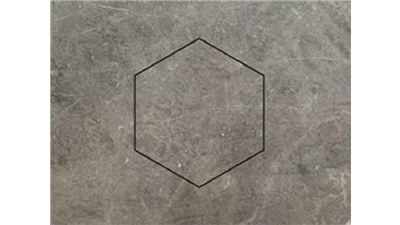

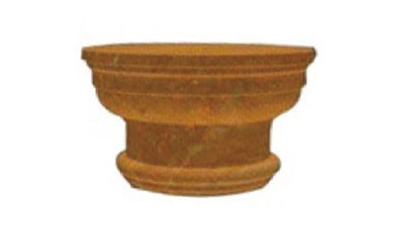

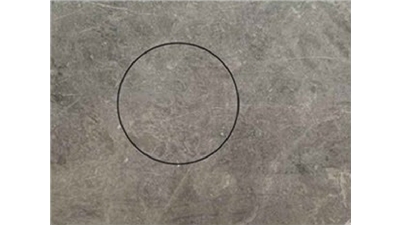

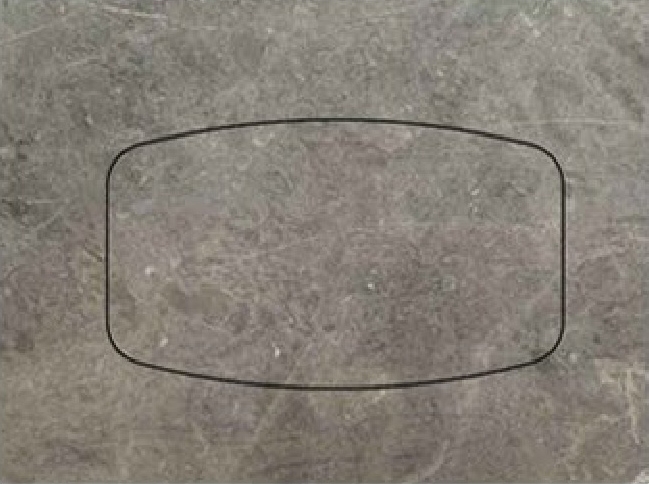

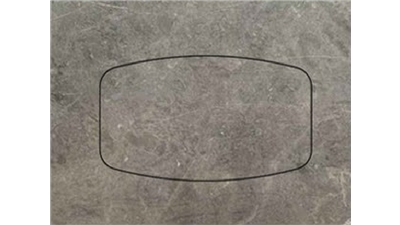

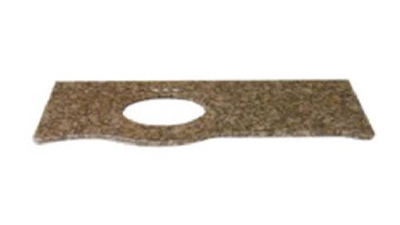

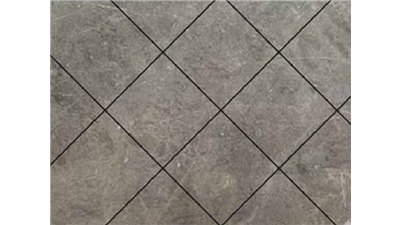

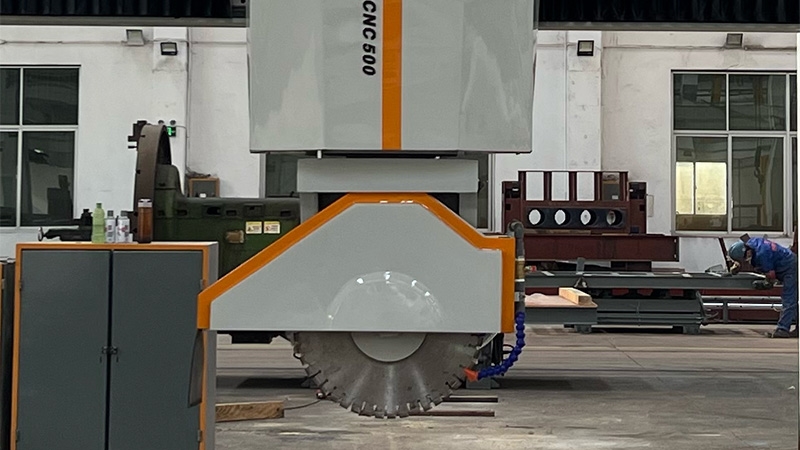

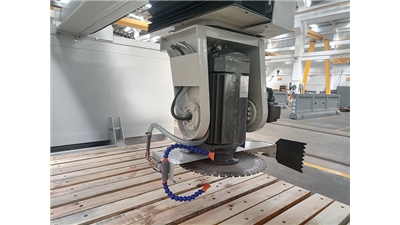

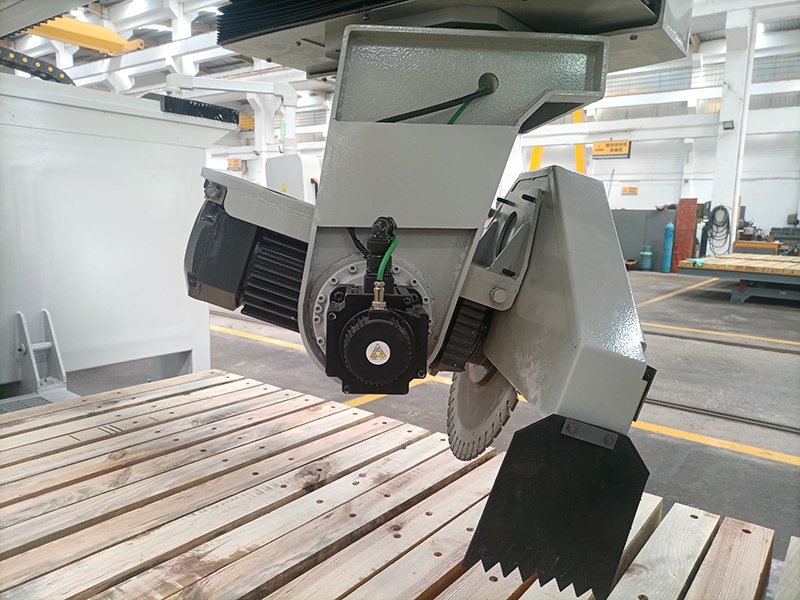

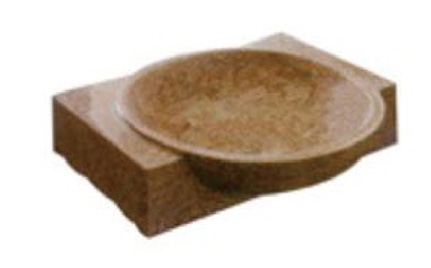

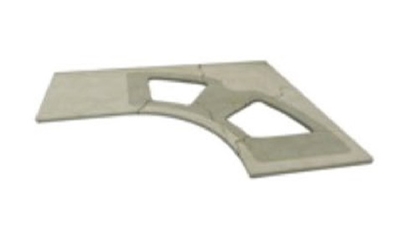

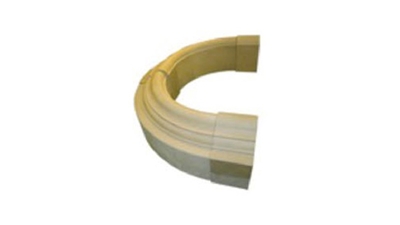

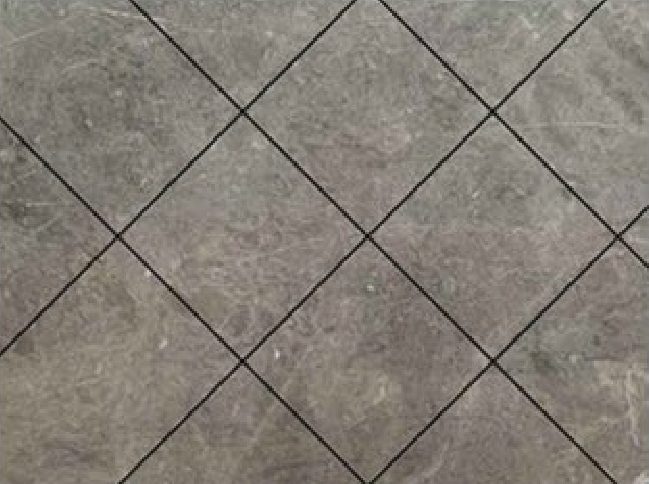

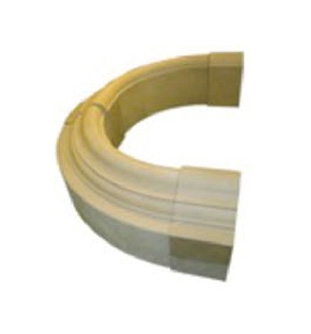

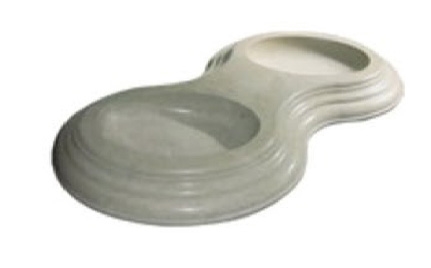

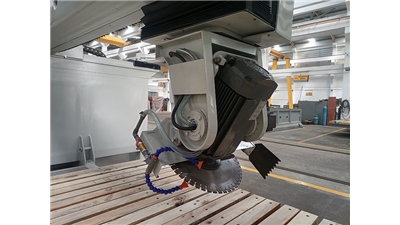

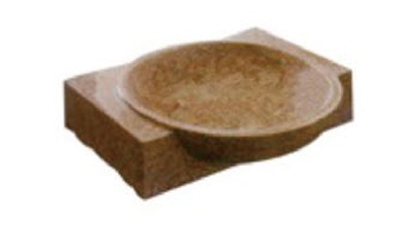

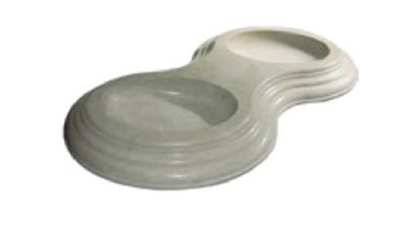

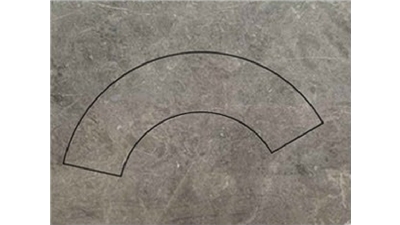

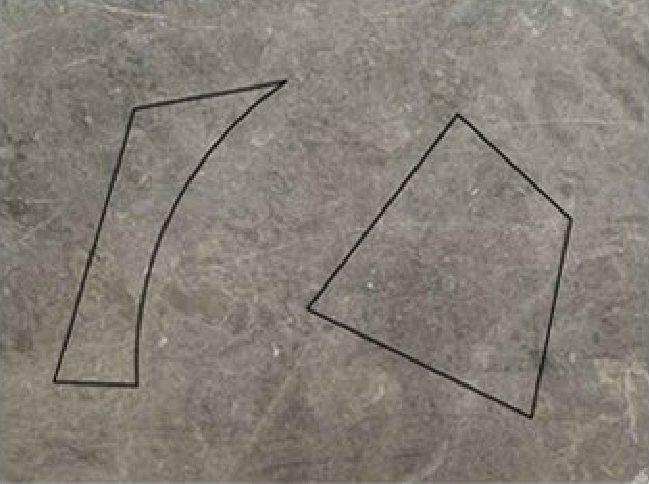

CNC500 5 axis bridge cutting machining center, adopts high-end industrial tablet computer and ultra-high precision special camera system, applies programming language of computer aided manufacturing, suits for size-to-size slab and various special shapes cutting and profiling (such as arc lines, straight lines, shaped lines, villa window lines and garden plaza medallion). This machine with the advantages of large stroke, fast speed, wide processing range, high precision, simple and intelligent operation, one machine for multi-purpose, etc. Suits for marble, artificial stone, quartz and granite stone processing enterprises. (can match milling and drilling system to do 3D profiling cutting, 2D engraving and 3D engraving this kinds of complex shaped three-dimensional processing.
| 名称 | Appellation | 单位/Unit | CNC605 |
| 锯片直径 | Max blade diameter | mm | Φ400~Φ600 |
| 最大加工尺寸（长×宽×高） | Max processing size(L*W*H) | mm | 3200×2000×500 |
| 左右行走行程（X轴） | Left-right movement stroke (X axis) | mm | 4100 |
| 前后行走行程（Y轴） | Forward-backward movement stroke (Y axis) | mm | 2900 |
| 升降行程（Z轴） | Lifting stroke (Z axis) | mm | 500 |
| 主轴旋转角度范围（C轴） | Range of spindle rotation degree (C axis) | 度/° | 0-360° |
| 主轴倾斜角度范围（A轴） | Range of spindle inclination degree (A axis) | 度/° | 0-90° |

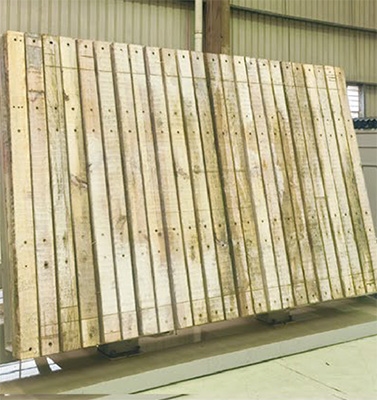

| 工作台翻板角度范围 | Range of worktable turn-over degree | 度/° | 0-85° |
| 耗水量 | Water consumption | m³/h | 2 |
| 主电机功率 | Power of main motor | kW | 22 |
| 总功率 | Total power | kW | 36 |
| 外形尺寸（长×宽×高） | Dimension(L×W×H) | mm | 6760×3880×3650 |
| 拍照功能（视觉系统） | Camera function (visual system) | √ | |
| 对刀功能（刀具直径测量系统） | Alignment function (Blade diameter measurement system) | 可选配can match | |
| 测厚功能（板材厚度测量系统） | Thickness measurement function (Slab thickness measurement system) | 可选配can match | |
| 吸盘功能（切割板材分板系统） | Suction cup function (Slab cutting separating system) | 可选配can match | |
| 铣刀功能（铣、钻雕刻系统） | Milling cutter function (Milling, drilling, engraving system) | 可选配can match |
